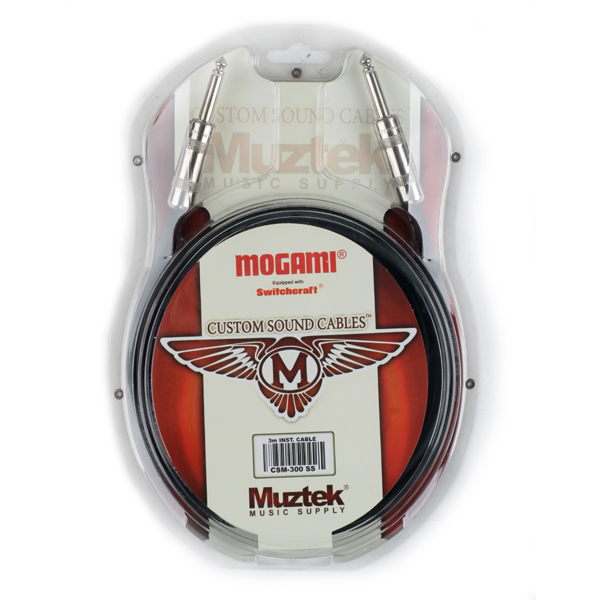

Muztek CSM-300 SS Mogami Series Cable

Muztek CSM-300 SS Mogami Series Cable

See 3 more pictures

Price:

$50.00

Brand:

Muztek

Product Description

Muztek combines the best 1/4 plug with the best cable.

Every foot of Mogami Cable is proudly manufactured in Nagano Japan, they answer to the highest standards.

Switchcraft 1/4 plugs are well regconised and well known for its durability.

Specification

* Cable : Mogami® 2524

Conductor : #20AWG(0.565mm²)
Insulation material : PE 2.7Ø (0.106”)
Sub-Shield : Conductive PVC (Carbon PVC)
Main Shield : Approx. 55/0.18A
Jacket : Flexible PVC 6.0Ø (0.236”)
D.C Resistance : Conductor – 0.033 Ohm/m , Shield – 0.014 Ohm/m
Capacitance at 1Khz, 20℃ : 130pF/m
Inductance : 0.2μH/m
Electrostatic Noise : 0.15mV MAX
Electromagnetic Noise at 10kHz : 0.07mV MAX
Microphonics at 50Kohm Load : 0.3mV max
Flex Life : 15,000Cycles
Applicable temperature : -20℃ ~ +60℃

* Plug : Switchcraft® 280

Tip, Rod and Handle : Nickel-plated copper alloy
Housing/Sleeve : Nickel-plated
Tip Terminal : Tin-plated copper alloy
Sleeve (Clamp) Terminal : Tin-plated steel
Insulation : Thermoplastic
Dielectric Withstanding Voltage : 500 Vac
Insulation Resistance : 50,000 Megaohms minimum (initial)
Operating Temperature : -20°C to +65°C
