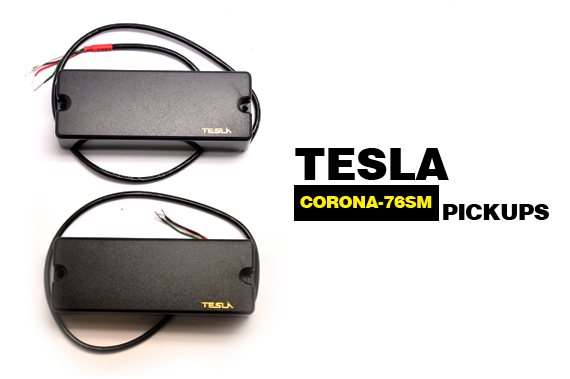

The Corona-76SM humbucker soap bar type 4 or 5 string bass pickup features neck and bridge positions that produce a rich deep, punching and very powerful bass sound. Designed for the ultimate in noise reduction this versatile humbucker is for you if you play Rock, Funk or Heavy Metal!
The Corona-76SM humbuckers are carefully made with plain enamel coated copper wire and Alnico 5 pole piece magnets. Equipped with 4 wire leads that give the player endless tonal possibilities.
Comes in a Set*
| CORONA-76SM | ||||
| Specification | ||||
| Position | Neck | Middle | Bridge | |
| D.C.Resistance | 15.8 Kohm | 16.6 Kohm | ||
| Resonant Peak | 4.3 kHz | 4.1 kHz | ||
| Spacing | 76 mm | 76 mm | ||
| Output level | Mid | Mid-High | ||
| Type | Dual Coil | |||
| Copper Wire | Plain Enamel | |||
| Magnet | Alnico 5(Polepieces) | |||
| Tone Chart |  |
|||
| 4-Conductor Wire | Red-Hot | |||
| White & Black-Center | ||||
| Green & Shield-Ground | ||||
| Pickup Color | Black | |||
| Rock, Metal, Jazz, Funk, Pop | ||||
