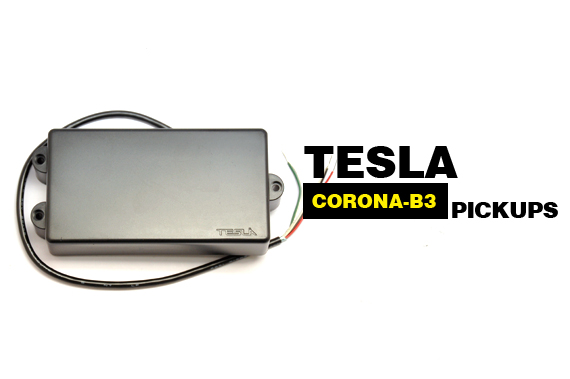

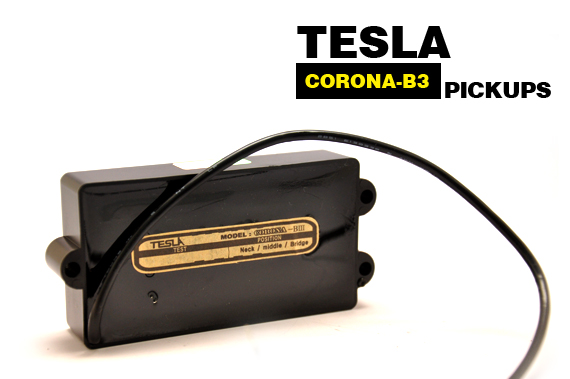

Tesla Corona-B3 Bass Pickups

The Corona-BIII’s unique shape is responsible to pick up the vibrations from all of the different string positions, it is perfectly balanced.  This extremely powerful versatile humbucker features the ultimate in noise reduction. The Corona B-III humbuckers are carefully made with heavy Formvar copper wire and Alnico 5 pole piece magnets. Equipped with 4 wire leads that give the player endless tonal possibilities.

CORONA-B3
Specification
Position		Neck	Middle	Bridge
D.C.Resistance				9.7  Kohm
Resonant Peak				5.2    kHz
Spacing				67    mm
Output level				Mid-High
Type		Dual Coil
Copper Wire		Heavy Formvar
Magnet		Alnico 5(Polepieces)
Tone Chart
4-Conductor Wire		Red-Hot
		White & Black-Center
		Green & Shield-Ground
Pickup Color		Black
Rock, Metal, Jazz, Funk, Pop
