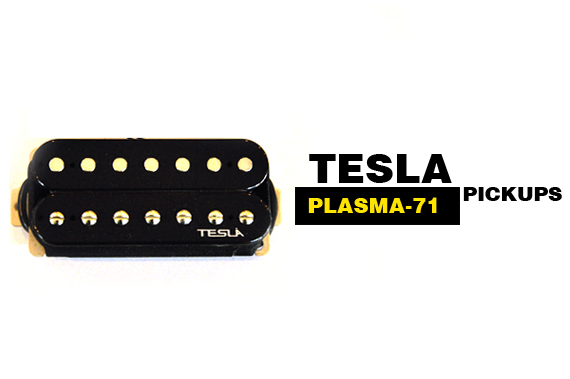

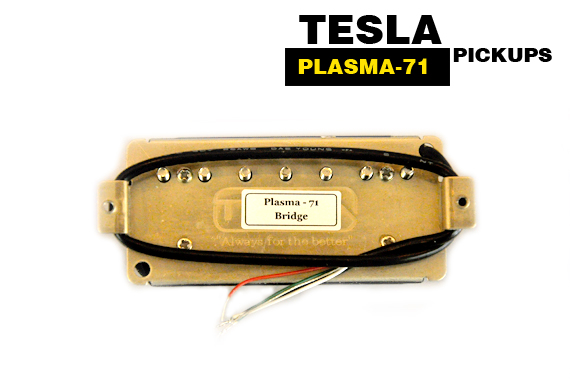

Created for the 7 string guitar, this humbucker features both neck and bridge pickups!
The neck pickup produces a smooth and clean sound, while the bridge pickup produces a heavy strong distorting sound. An excellent choice for you if you play rock, metal or funk!
Plasma-71 pickups are carefully made with American made plain enamel copper wire; Ceramic bar type magnets. The coils are wax potted for stabilization to insure the complete, clean reproduction of sound.
Equipped with 4 wire leads that give the player endless tonal possibilities.
| PLASMA-71 | ||||
| Specification | ||||
| Position | Neck | Middle | Bridge | |
| D.C.Resistance | 14.5 Kohm | 17.8 Kohm | ||
| Resonant Peak | 4.8 kHz | 4.3 kHz | ||
| Spacing | 58 mm | 61.5 mm | ||
| Output level | Mid-High | High | ||
| Type | Dual Coil | |||
| Copper Wire | Plain Enamel | |||
| Magnet | Ceramic(Bar) | |||
| Tone Chart |  |
|||
| 4-Conductor Wire | Red-Hot | |||
| White & Black-Center | ||||
| Green & Shield-Ground | ||||
| Pickup Color | Black | |||
| Rock, Metal, Funk, Pop | ||||
