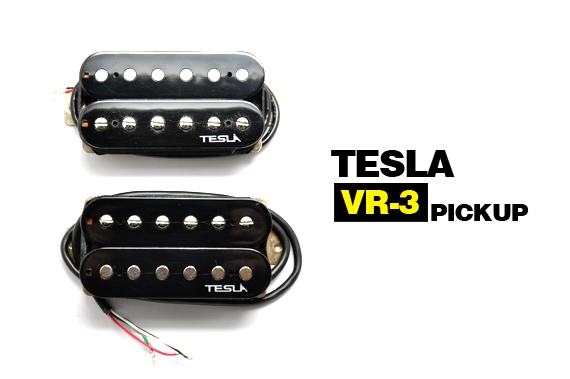

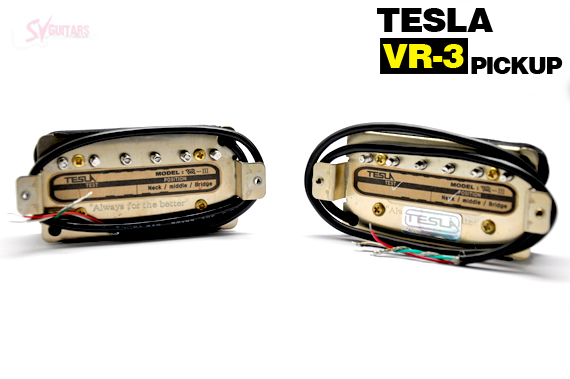

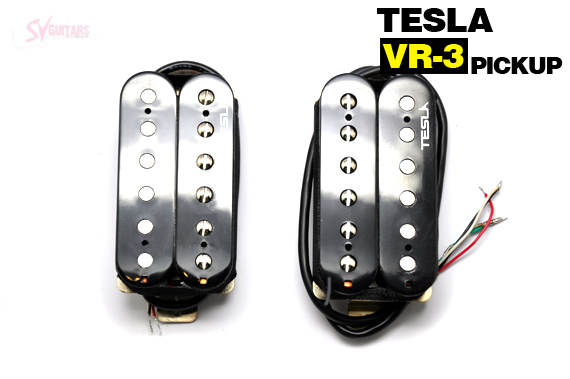

Tesla VR-3 Pickups

The VR-3 pickup, the third in our line of vintage pickups delivers a clean, bright tone with a sweet sustain. This pickup was especially designed to achieve total tonal balance.

The VR-3 pickup is carefully made with heavy Formvar copper wire and bar type Alnico 5 magnets. The coils are wax potted for stabilization to insure the complete, clean reproduction of sound.

Equipped with 4 wire leads that give the player endless tonal possibilities.

Neck & Bridge Pickup Set. (Individual Pickup available for purchase at $80 each)

Specifications

VR-3
Specification
Position		Neck	Middle	Bridge
D.C.Resistance		7.8 Kohm		9.3  Kohm
Resonant Peak		6.3  kHz		5.8    kHz
Spacing		50  mm		52    mm
Output level		Mid		Mid-High
Type		Dual Coil
Copper Wire		Heavy Formvar
Magnet		Alnico 5(Bar)
Tone Chart
4-Conductor Wire		Red-Hot
		White & Black-Center
		Green & Shield-Ground
Pickup Color		Black, White
Rock, Jazz, Funk, Pop, Country

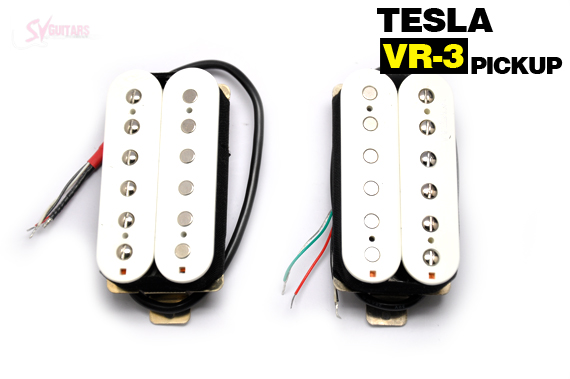

Black & White colours available
