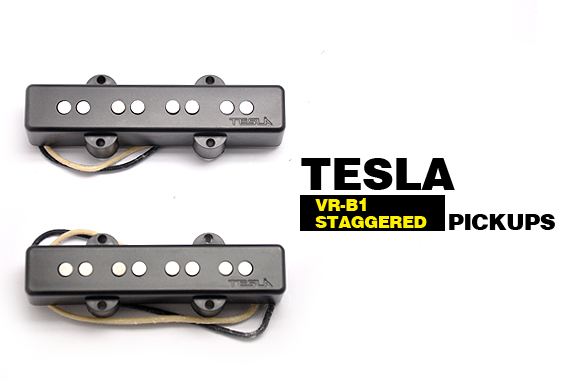

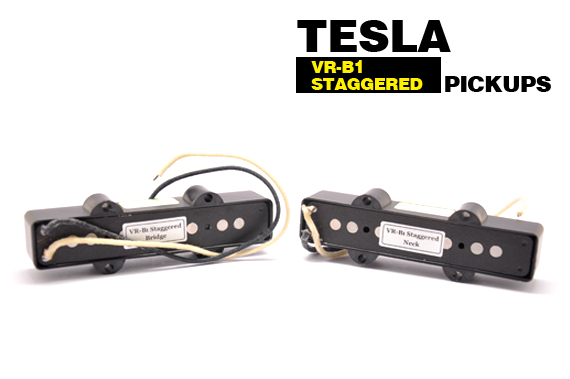

Tesla VR-B1 Staggered Bass Pickups

The VR-B1 staggered pole piece Jazz style bass pickup features a new spin on a time-honored design.  The result is a set of unique single-coil pickups that produce an impressively clean traditional J-Bass sound with a great attack. We are able to balance the quality of tonal reproduction to the highest level by calibrating the heights of each of the eight Alnico 5 magnet pole pieces specifically to each string.
The VR- BI staggered pickups are carefully made with plain enamel copper wire, Alnico 5 pole piece magnets, a fiber bobbin and cloth covered wire. Equipped with 2 wire leads!

Comes in a set*

VR-B1Staggered
Specification
Position		Neck	Middle	Bridge
D.C.Resistance		7.1 Kohm		7.6  Kohm
Resonant Peak		7.9  kHz		7.3    kHz
Spacing		56.1  mm		59.1    mm
Output level		Mid		Mid-High
Type		Single Coil
Copper Wire		Heavy Formvar
Magnet		Alnico 5(Polepieces)
Tone Chart
Wax Cloth Covered Wire		White-Hot
		Black-Ground
Pickup Color		Black
Rock, Jazz, Funk, Blues, Pop, Country
