You want a true smooth and clear vintage sound; try our version of the P-90!
The bridge pickup features a higher output to enhance the clean and rich sounds!
It is available in the popular Soap Bar casing!

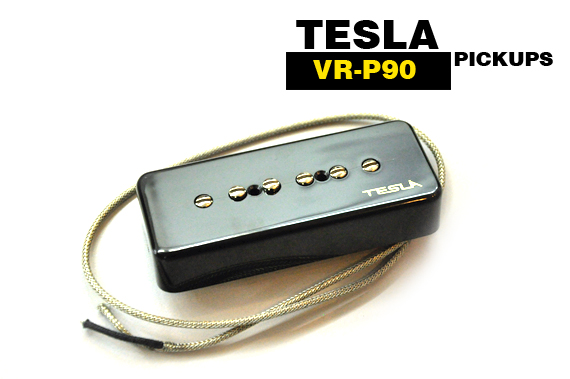

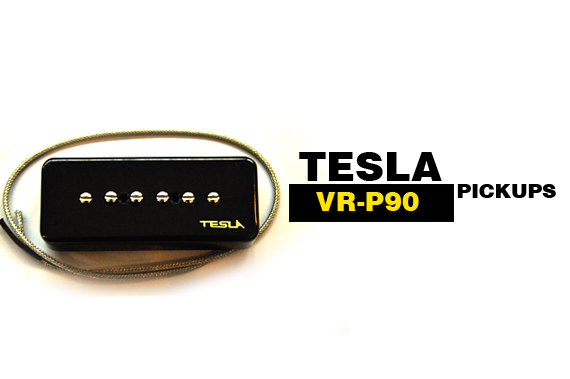

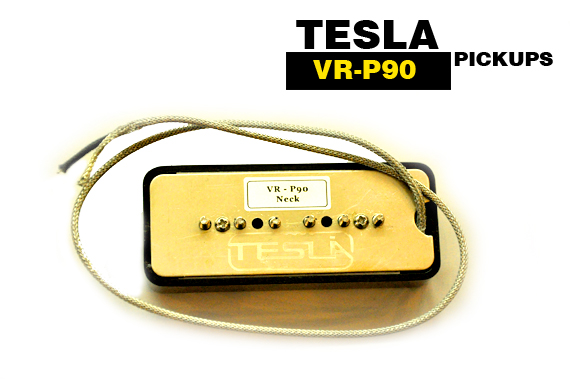

The VR-P90 pickup is carefully made with 42 AWG heavy Formvar copper wire and bar type Alnico 5 magnets plus 2-conductor braided shield wire. The coils are wax potted for stabilization to insure the complete, clean reproduction of sound.
Equipped with 2 wire leads that give the player many tonal possibilities!
NECK/BRIDGE Pickups Available.
| VR-P90 | ||||
| Specification | ||||
| Position | Neck | Middle | Bridge | |
| D.C.Resistance | 7.2 Kohm | 9.5 Kohm | ||
| Resonant Peak | 6.8 kHz | 5.1 kHz | ||
| Spacing | 50 mm | 50 mm | ||
| Output level | Mid | Mid-High | ||
| Type | Single Coil | |||
| Copper Wire | Heavy Formvar | |||
| Magnet | Alnico 5(Bars) | |||
| Tone Chart |  |
|||
| Single Conductor Braided Shield Wire | Black-Hot | |||
| Shield-Ground | ||||
| Pickup Color | Black, Cream | |||
| Rock, Jazz, Funk, Blues, Pop, Country | ||||
